SOUDA 560-4 LED
For dry compartments on all types of vessels: crew and passenger cabins, lounges, dining rooms, the wheelhouse, the telegraph room and corridors.
- LED
- IP44
- 16.8 W
- 230 V AC
- 4000 K
Indoor lights

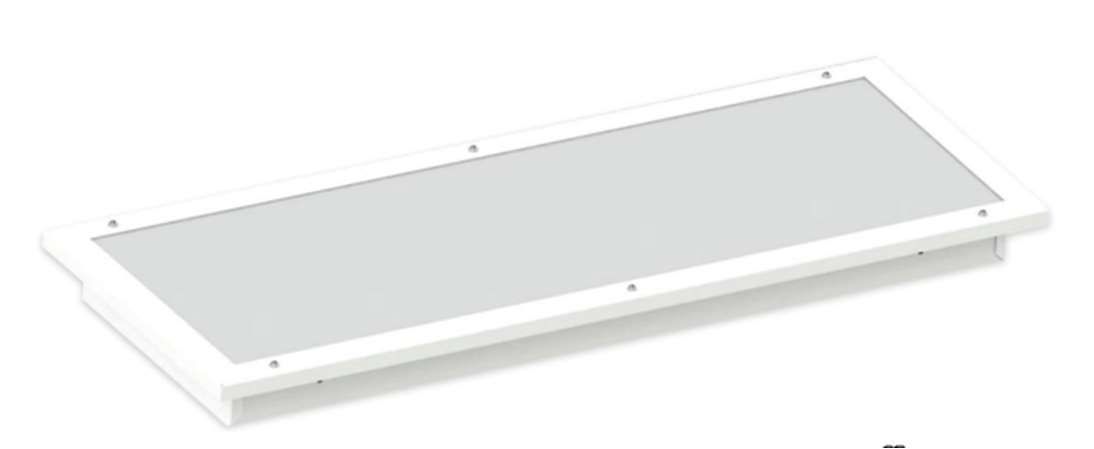

KISSAMOS 560-4 LED
- LED
- IP44
- 16.8 W
- 230 V AC
- 4000 K
For dry compartments on all types of vessels: crew and passenger cabins, lounges, dining rooms, the wheelhouse, the telegraph room and corridors.
- Power
- 16.8 W
- Luminous flux
- 3,000 lm
- Colour temperature
- 4000 K
- IP rating
- IP44
- Voltage
- 230 V AC
Technical specifications
| Ambient temperature | -20 °C to +45 °C |
|---|---|
| Power consumption | 16.7 W |
| Input voltage | 220-240 V AC |
| Frequency | 50/60 Hz |
| LED colour temperature | 4000 K |
| CRI | >80 |
| Luminous flux | 3000 lm |
| Lifetime | 100,000 h |
| Diffuser / cover | Polycarbonate |
| Housing | Galvanised sheet |
| Housing finish | RAL 9016 |
| IP rating | IP44 |
| Inrush current | iMAX 25 A, 300 µs |
Options and extras
- Emergency LED module 24 V DC, 5 W, 500 lm

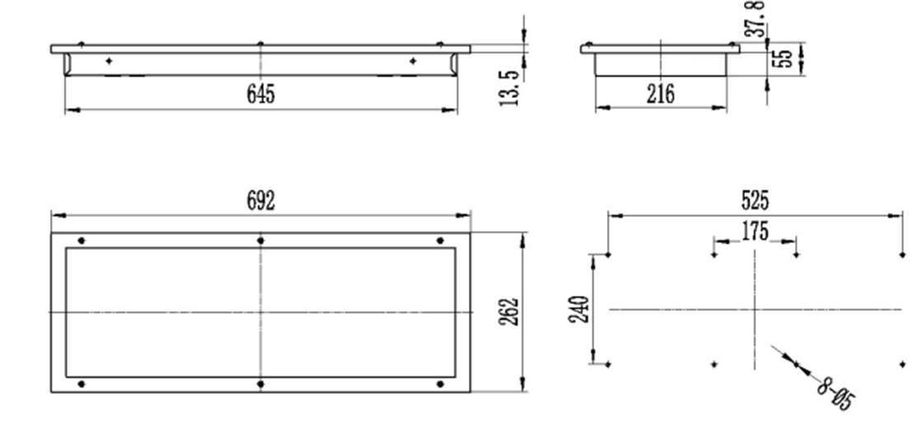

Technical drawings
